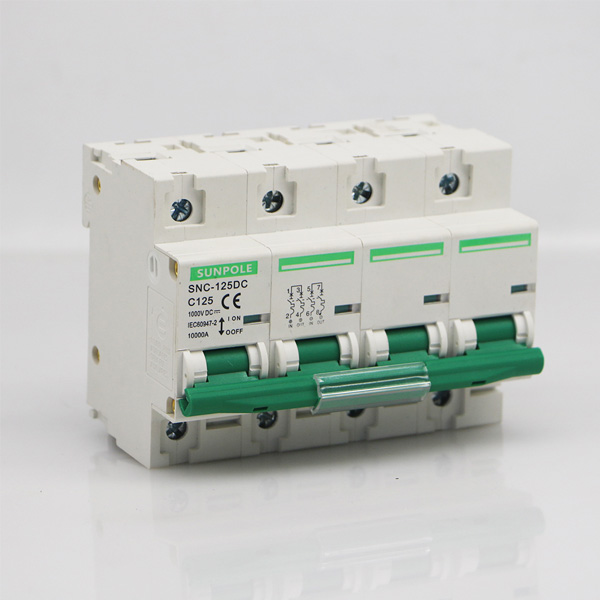

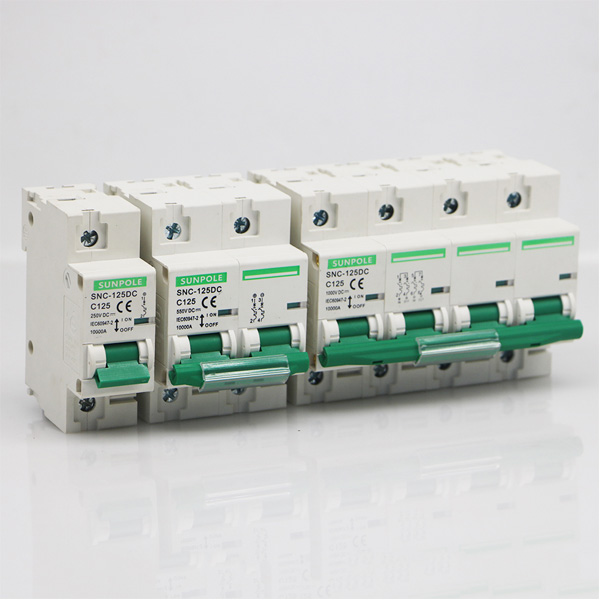

SNC-125DC high breaking capacity circuit breaker is specially for solar PV system. The current is form 63A to 125A and voltage up to 1000VDC. Standard according to IEC/EN60947-2.
Product Details:
Item | DC CIRCUIT BREAKER |
Model Number | SNC-125DC |
Pole | 1P/2P/4P |
Rated Current In | 80A, 100A, 125A |
Rated Operating Voltage | 1P 250V/2P 550V/4P 1000V |
Standard | IEC/EN60947-2 |
Breaking Capacity | 6KA/10KA |
Electrical Life | 1500 Times |
Mechanical Life | 20000 times(C.O.) |
