According to IEC60269-6 and IEC60947-2
Rated current: 1-32A
Rated voltage: DC 1000V
Rated breaking capacity:DC 20KA
Operating class gPV for Solar protection
DC Fuse holder is also called DC fuse carrier and DC fuse base, they’re used to protection the solar panels from short circuit and overload.
Product Details:

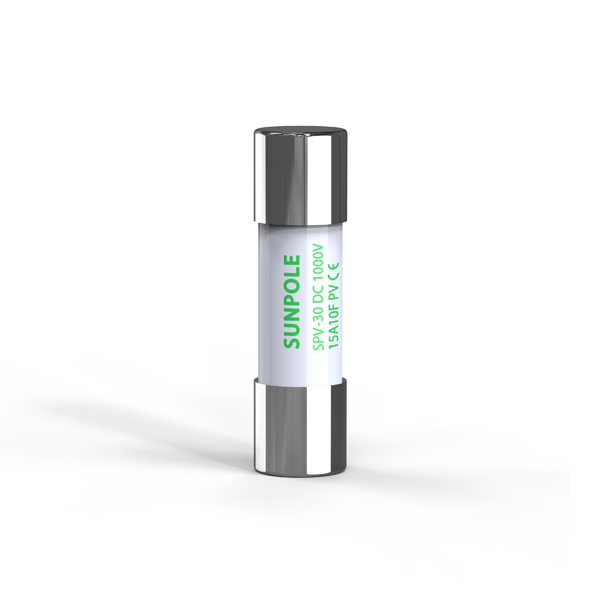

| Item | DC Fuse with fuse holder |
| Model Number | SPV-30 |
| Pole | 1P |
| Rated Current(In) | 1,2,3,4,5,6,8,10,12,15,20,25,32 |
| Biggest Block Ability(KA) | 20 |
| The Most High Power Consumption(W) | 3.5 |
| Connection(mm2) | 2 .5 -1 0 |
| Working Temperature(℃ ) | -30~+70 |
| Resistance And Damp Hot | Class 2 |
| Altitude(m) | ≤ 2000 |
| Relative Humidity | ≤ 95% |
| Protection Class/Degree | IP20 |
| Pollution | 3 |
| Installation Environment | No obvious shock and vibration |
| Installation Class/Type | Class III/DIN rail |
| Fuse Size | 10×38 |
