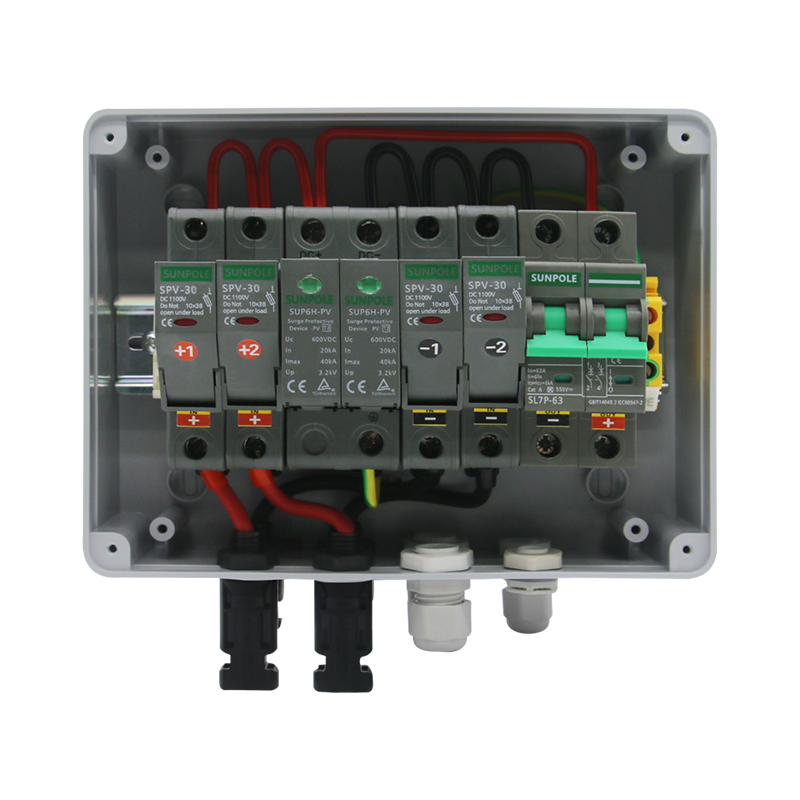

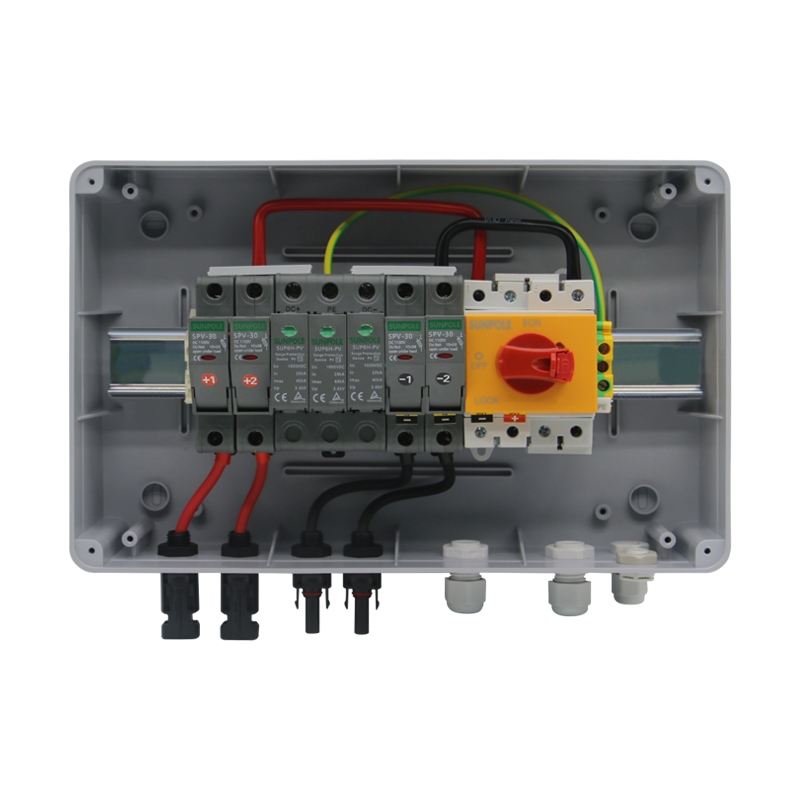

ADVANTAGES:

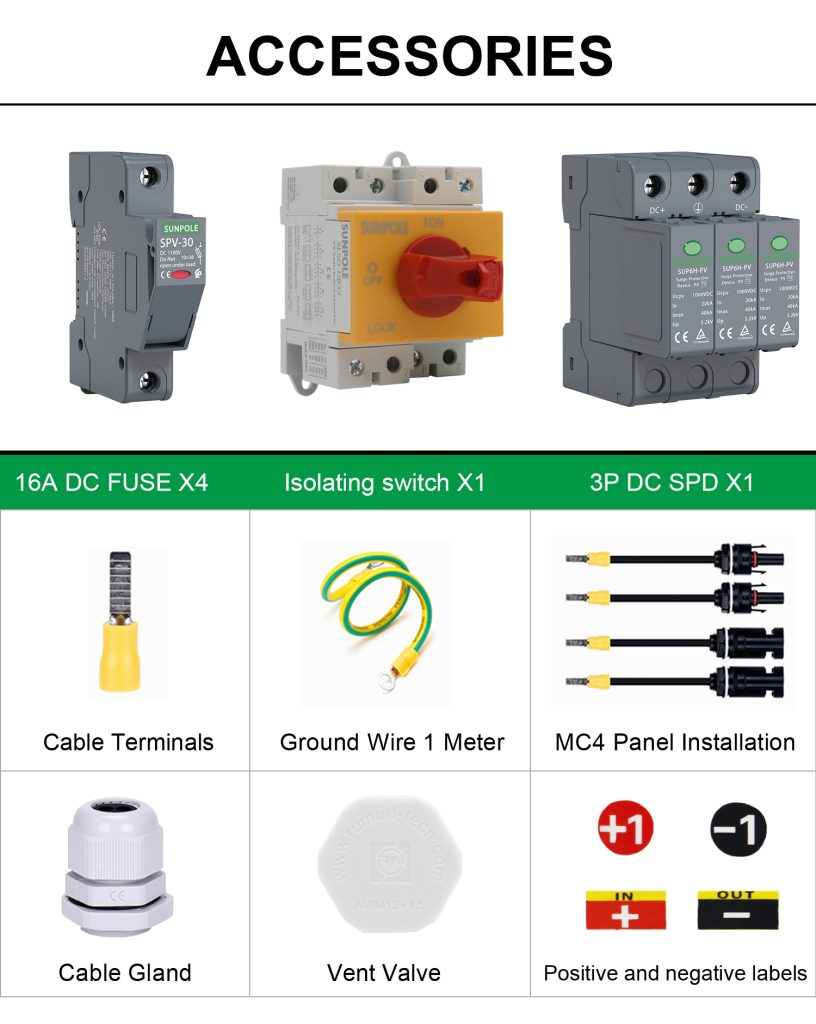

With 4pcs of gPV FUSE
With 1 pc of DC Surge Protector
With 1 pc of DC breaker or DC switch
IP65 design, waterproof, anti dust and anti-UV.
Strict test for high and low temperature.

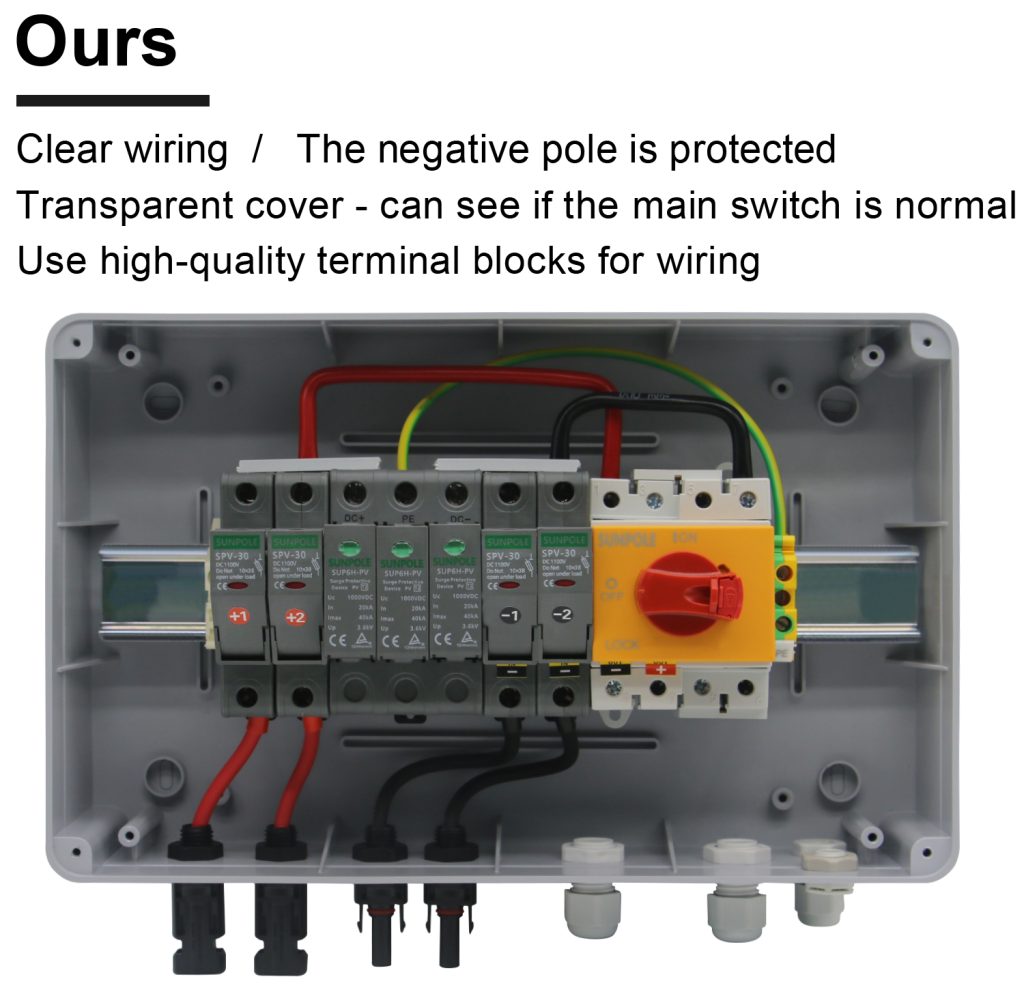

The simple installation, the simplified system wiring, the convenient wiring
The box is made of ABS and PC materials
Used for single crystal silicon solar modules, polycrystalline silicon solar modules, thin film solar modules. Current rating of the photovoltaic fuse, circuit breaker, load isolation switch is modified
DESCRIPTION:
| Product Name | DC combiner box |
| Model Code | SHLX-PV2/1 |
| Rated Voltage | 550V/1000V |

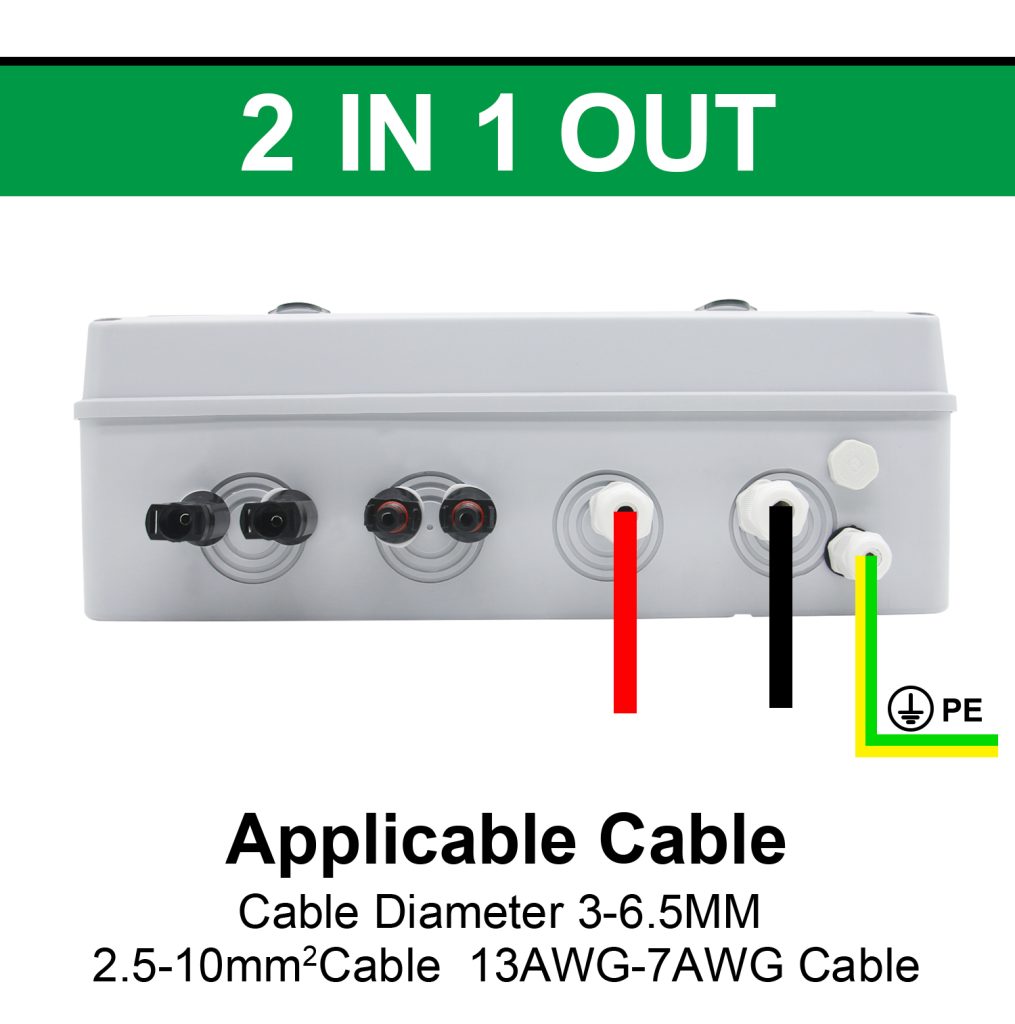

| Input | 2string |
| output | 1string |
| Temperature range | -25℃~+55℃ |
| Certificate | TUV / CE / CB /TUV |
| Enclosure | |
| IP Protection Class(IEC60529) | IP65 |
| Materials | Polycarbonate / ABS |
| Spec | UV resistance and Flame retardant |
| DC switch | |
| Rated Voltage | 550V/1000V |
| Rated Current | 32A |
| DC SPD | |
| Max Operating Voltage | 600V/1000V |
| Max Discharge Current | 40KA |
| Nominal discharge current | 20KA |
| DC Fuse | |
| Rated Voltage | 1000V |
| Fuse link | 15A 10*38MM |
| Finger safe touch | YES |
| LED indicator | YES |

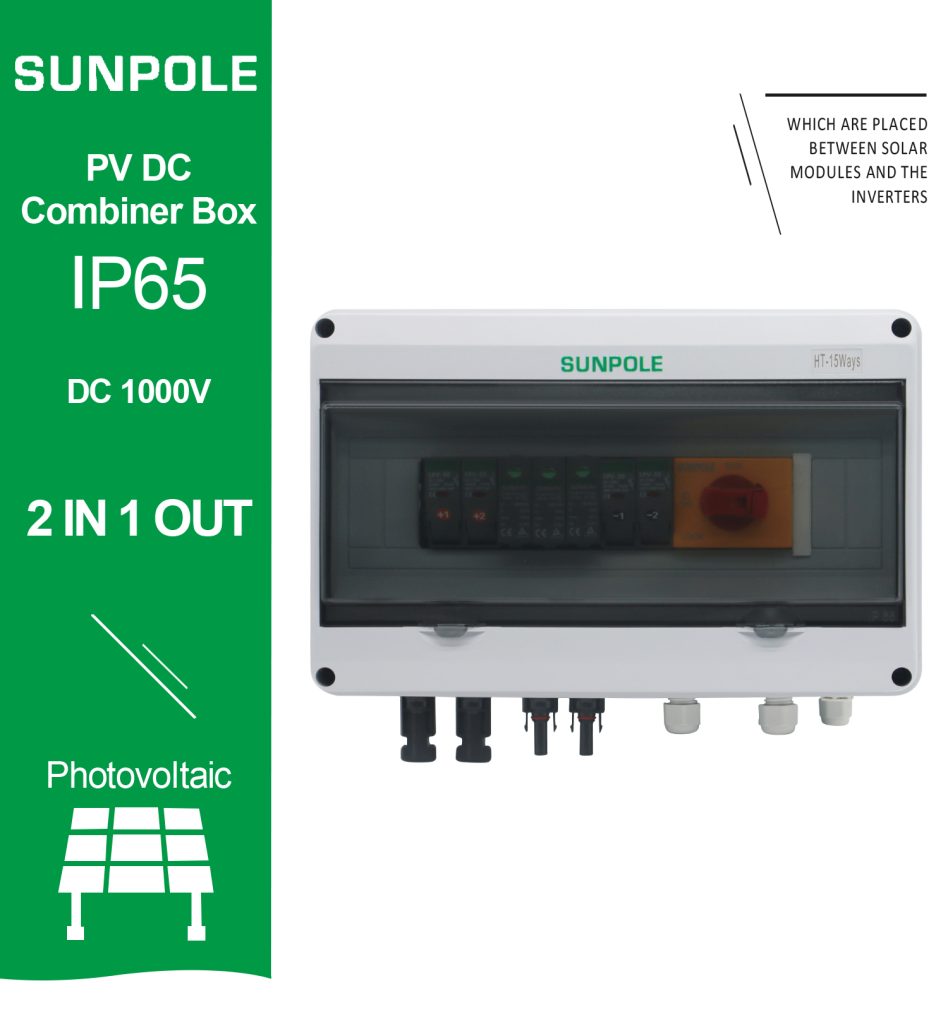

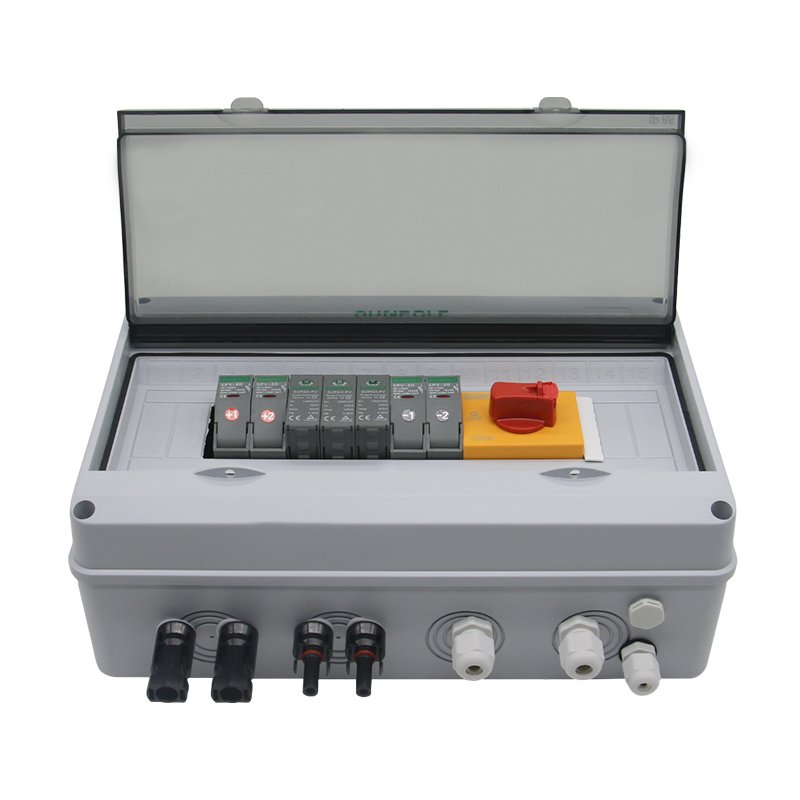

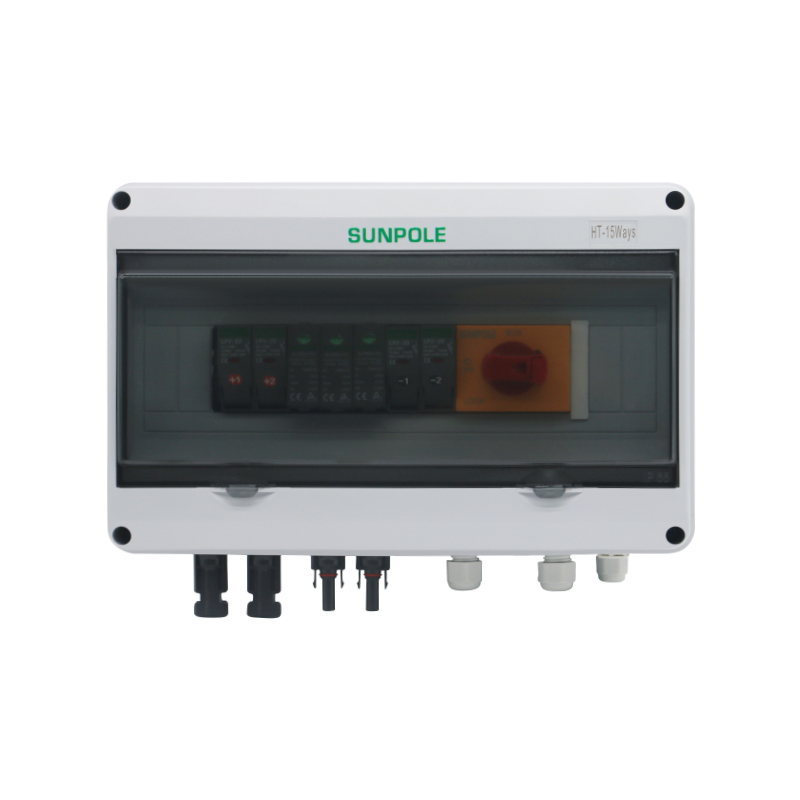

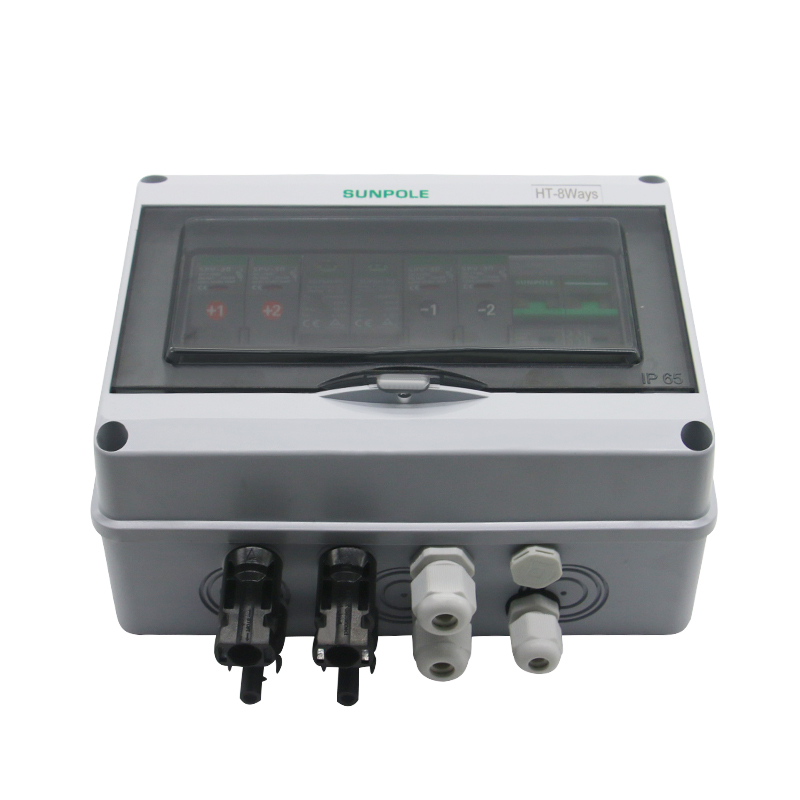

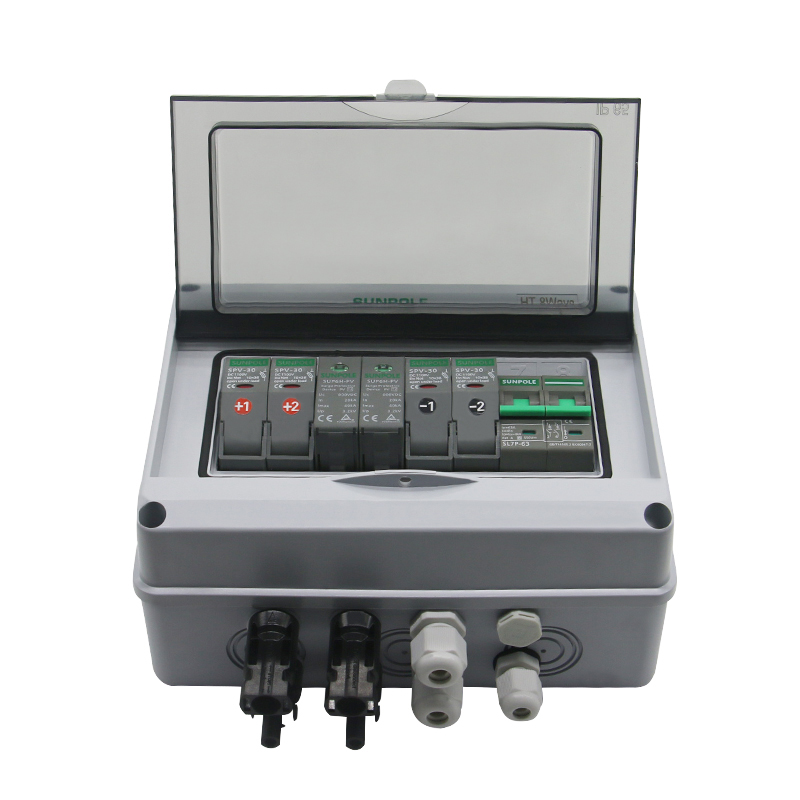

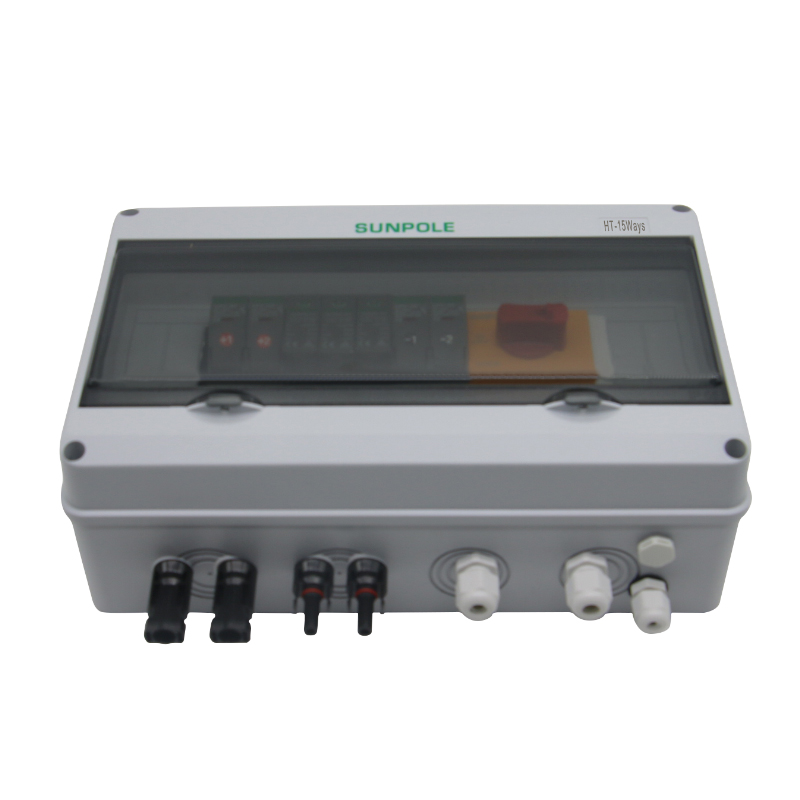

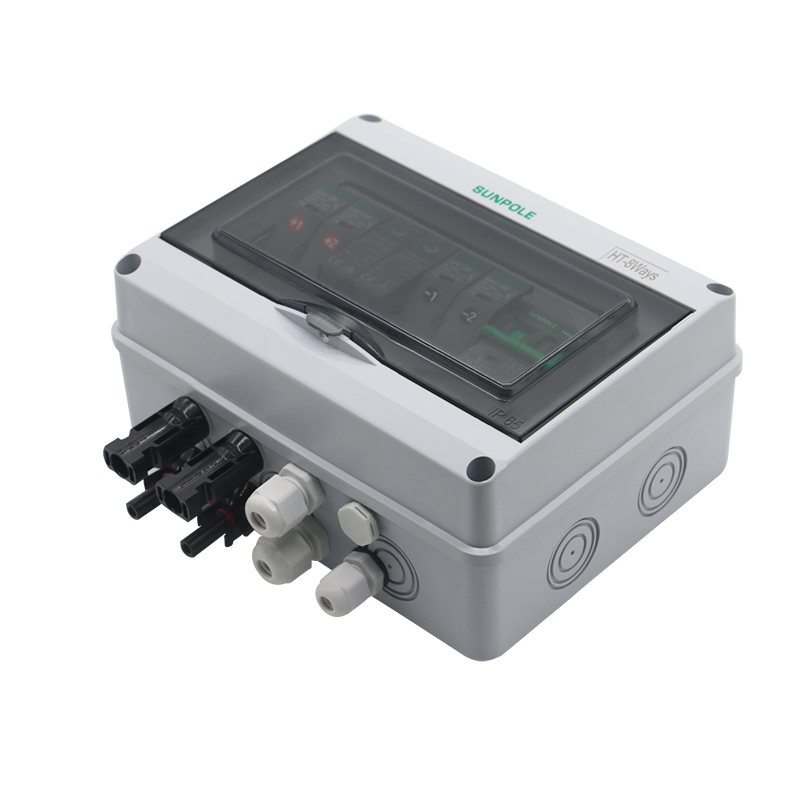

SHLX-PV2/1 PV combiner box is suitable for inverter (MAX input voltage DC550V/DC1000V, 2 PV input channel, 1 output channel, single MPPT inverter). Box body is made of PC engineering materials, with test for UL94 V-2 flame retardant, temperature rise, anti impact, anti ultraviolet, and other testing. IP65 protection grade.
Sunpole PV Combiner box also can be customized in any designs. The standard fuse is 15A DC1000V
