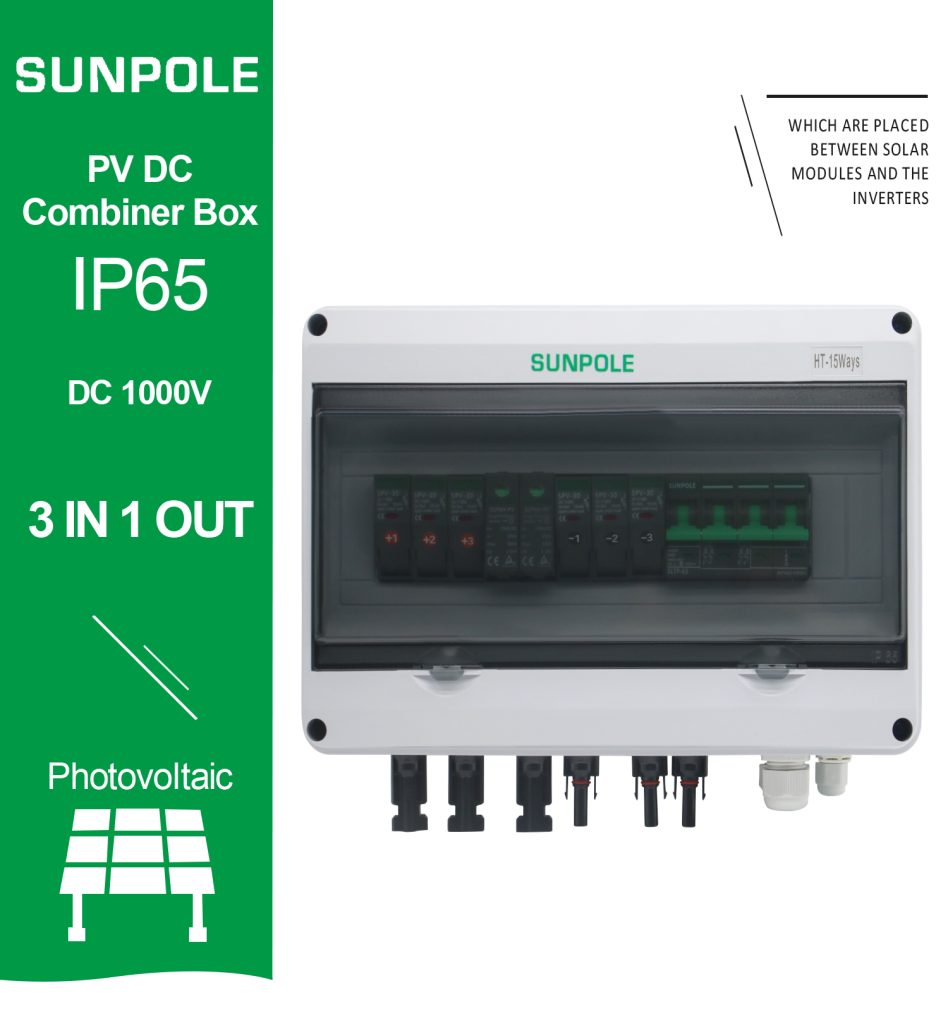

ADVANTAGES:
With 15A DC1000V solar FUSE
With DC1000V 20-40kA Surge Protective Device
With 32A 1000VDC circuit breaker or 32A 1000VDC PV disconnector.
IP65 design, waterproof, anti dust and anti-UV protection.
Strict tested and used widely.
Used for single crystal silicon solar modules, polycrystalline silicon solar modules, thin film solar modules. Current rating of the photovoltaic fuse, circuit breaker, load isolation switch is modified
DESCRIPTION:
| Product Name | DC combiner box |
| Model Code | SHLX-PV3/1 |
| Rated Voltage | 550V/1000V |
| Input | 3string |
| output | 1string |
| Temperature range | -25℃~+55℃ |
| Certificate | TUV / CE / CB /TUV |
| Enclosure | |
| IP Protection Class(IEC60529) | IP65 |
| Materials | Polycarbonate / ABS |
| Spec | UV resistance and Flame retardant |
| DC switch | |
| Rated Voltage | 550V/1000V |
| Rated Current | 32A |
| DC SPD | |
| Max Operating Voltage | 600V/1000V |
| Max Discharge Current | 40KA |
| Nominal discharge current | 20KA |
| DC Fuse | |
| Rated Voltage | 1000V |
| Fuse link | 15A 10*38MM |
| Finger safe touch | YES |
| LED indicator | YES |

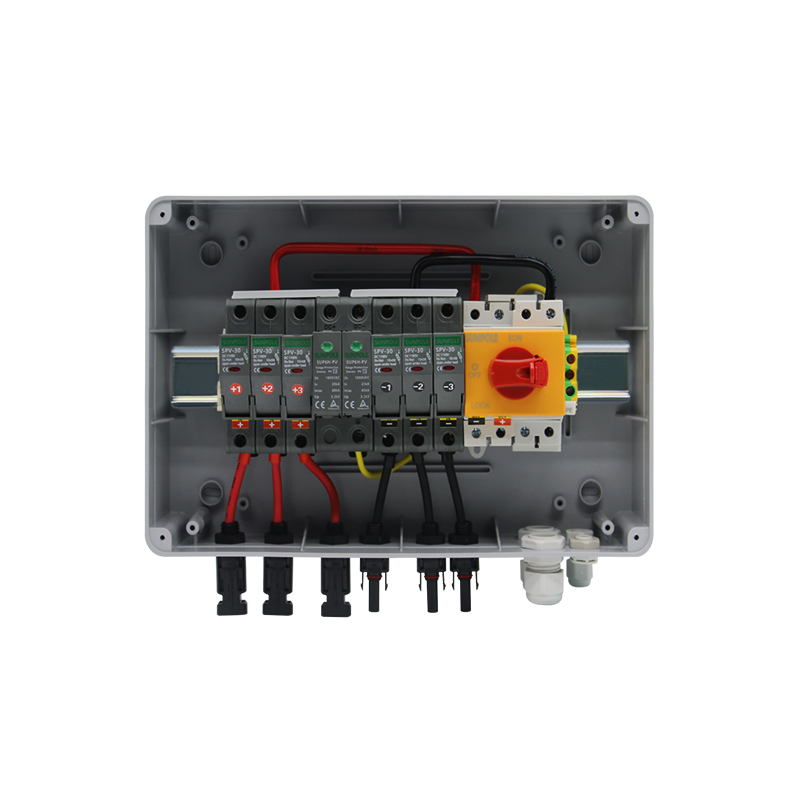

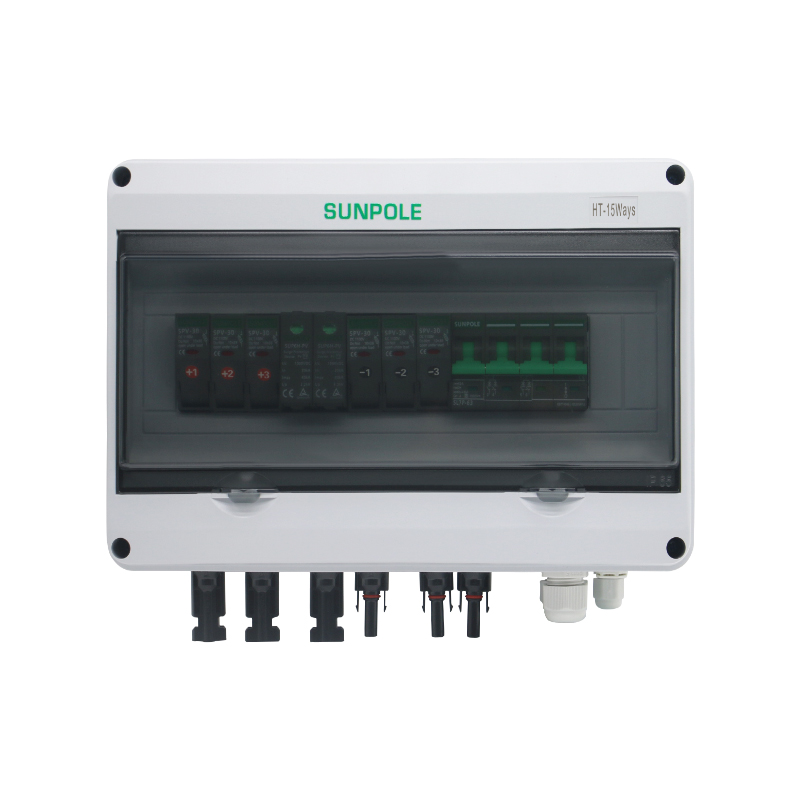

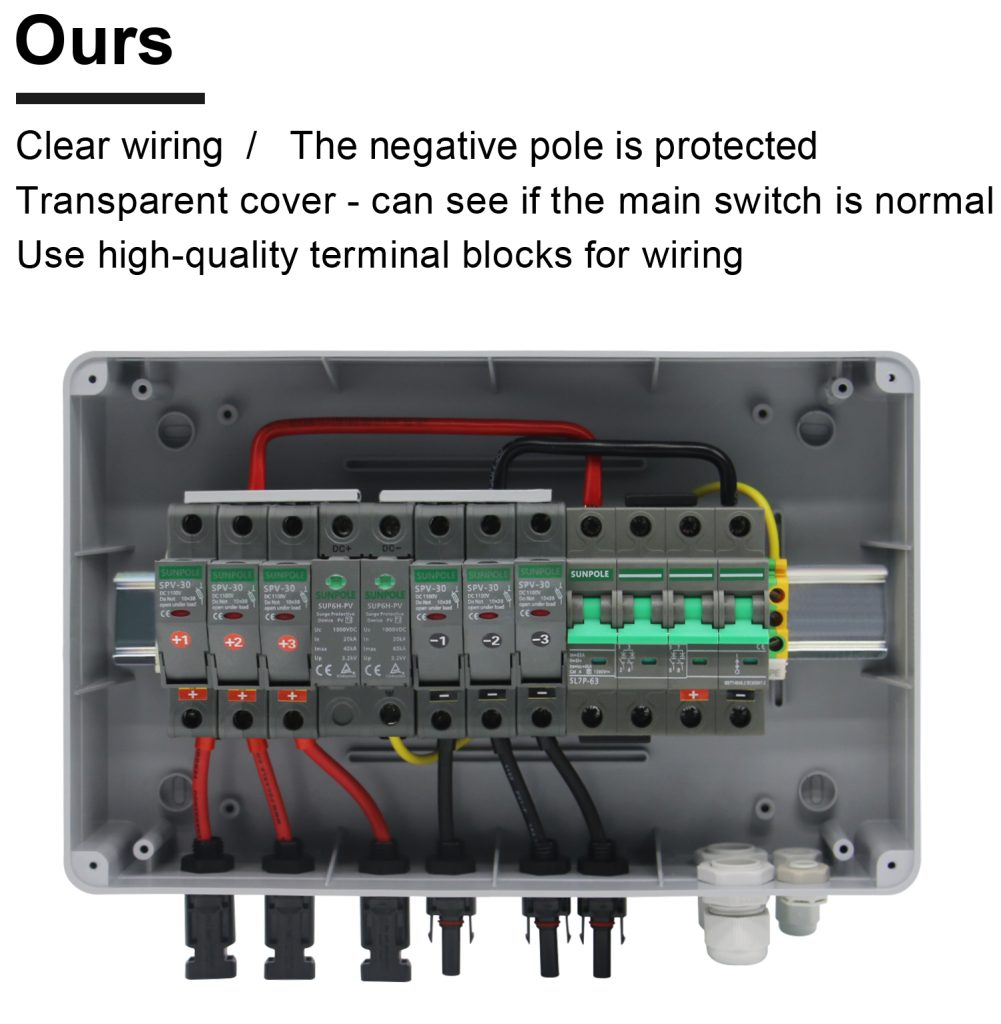

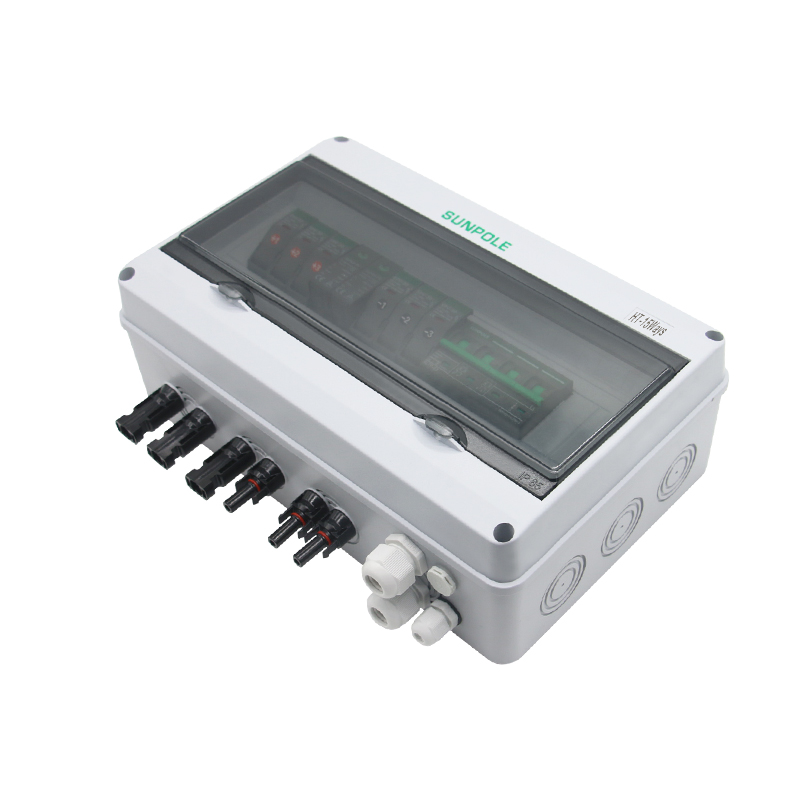

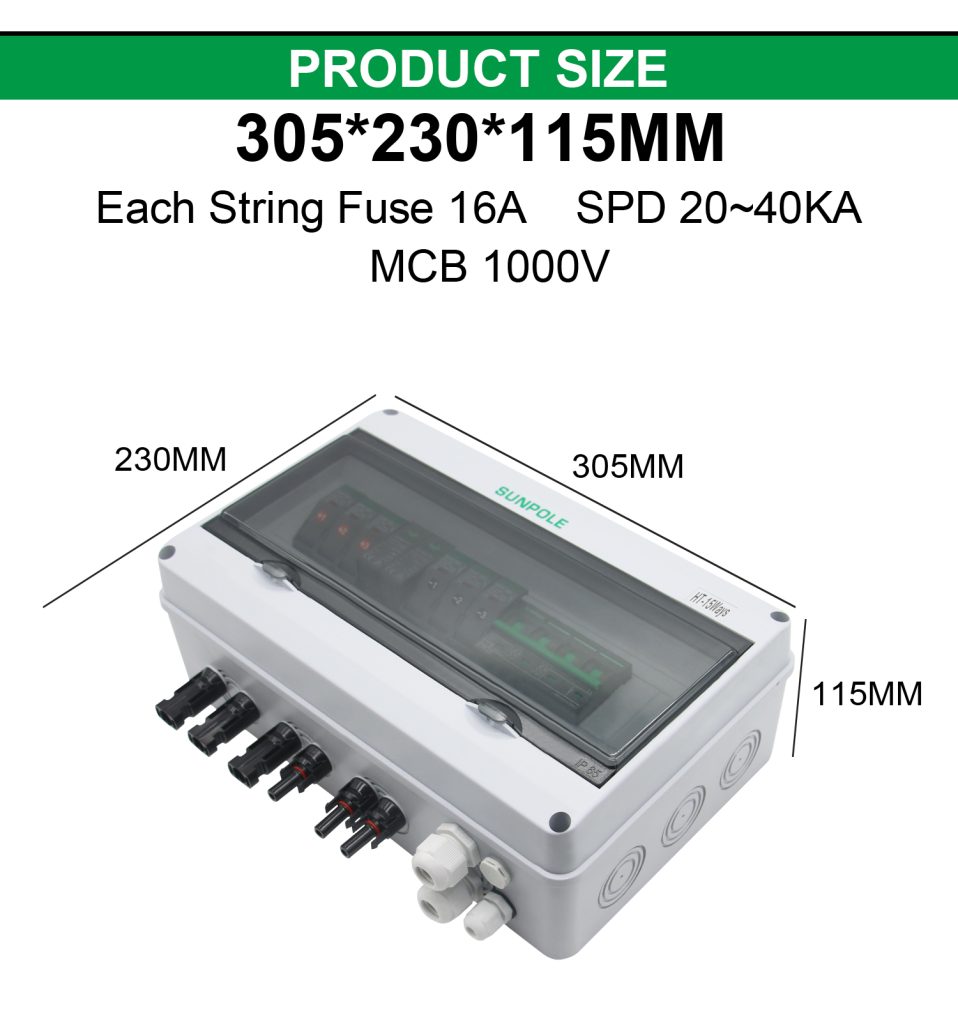

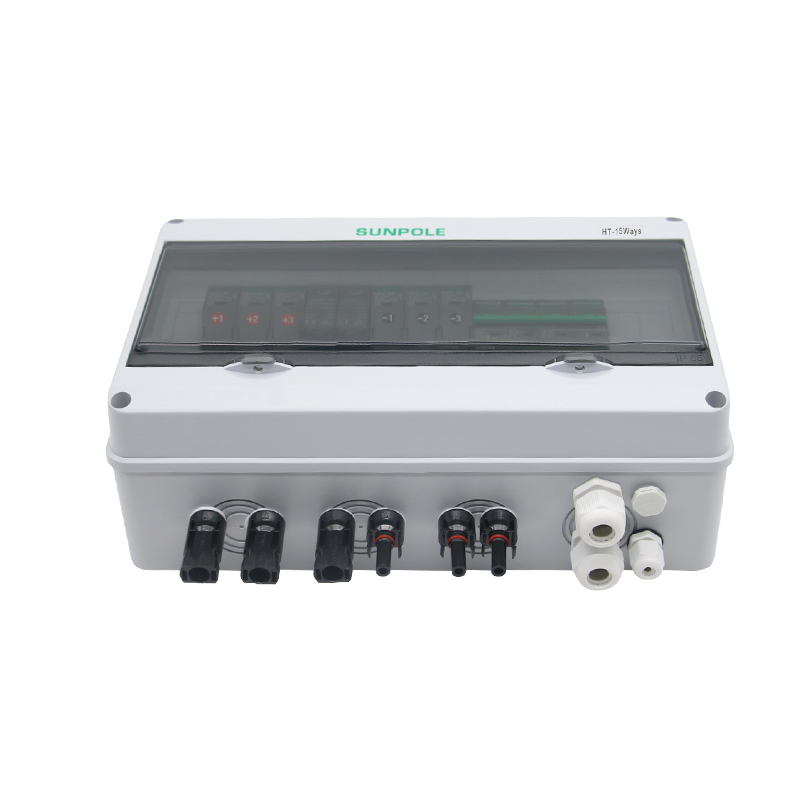

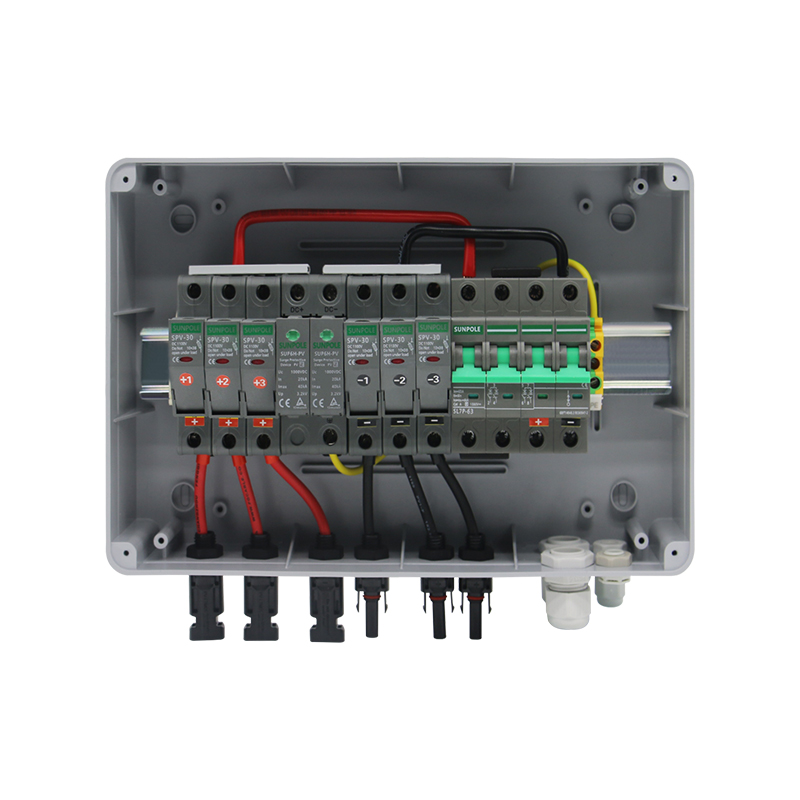

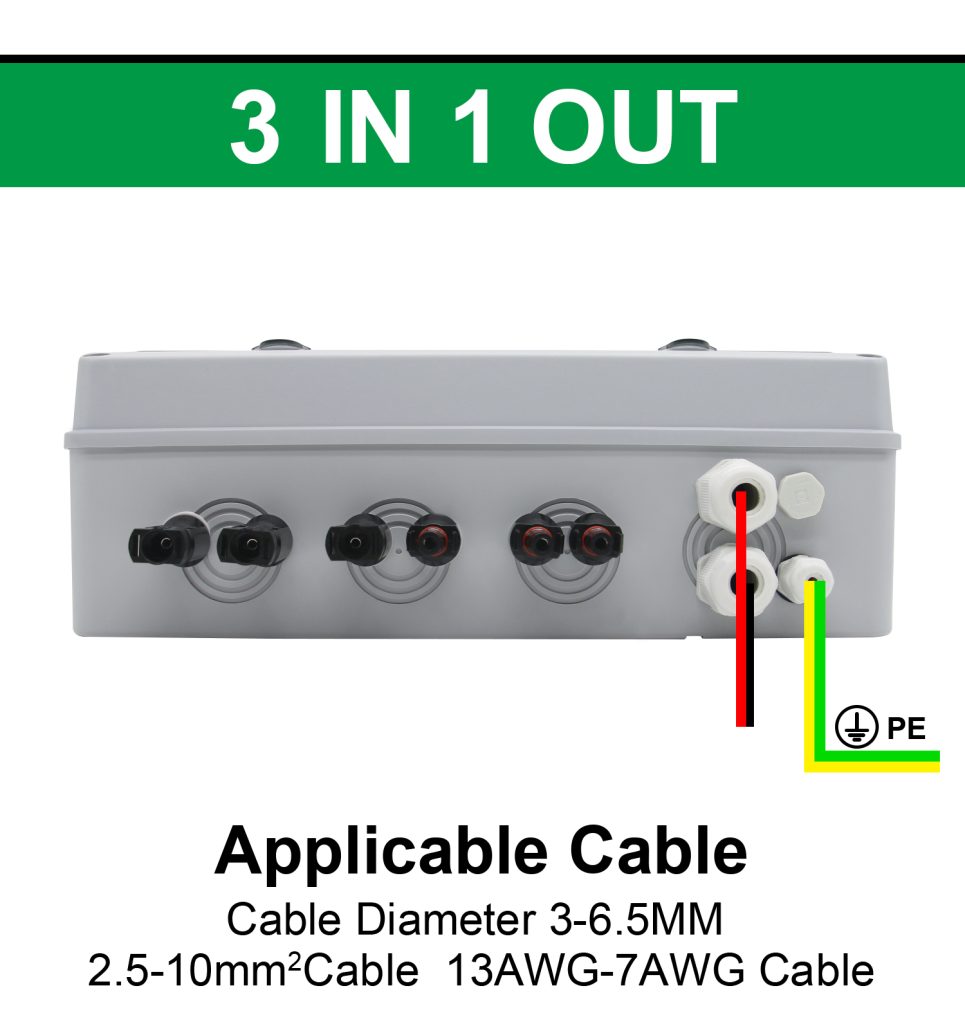

SHLX-PV3/1 DC combiner box is suitable for solar inverter (MAX input voltage DC550V/DC1000V, 3 PV input channel, 1 output channel, three MPPT inverter). Box body is made of PC plastic materials, with test for V-2 Flame retardant. IP65 protection grade.

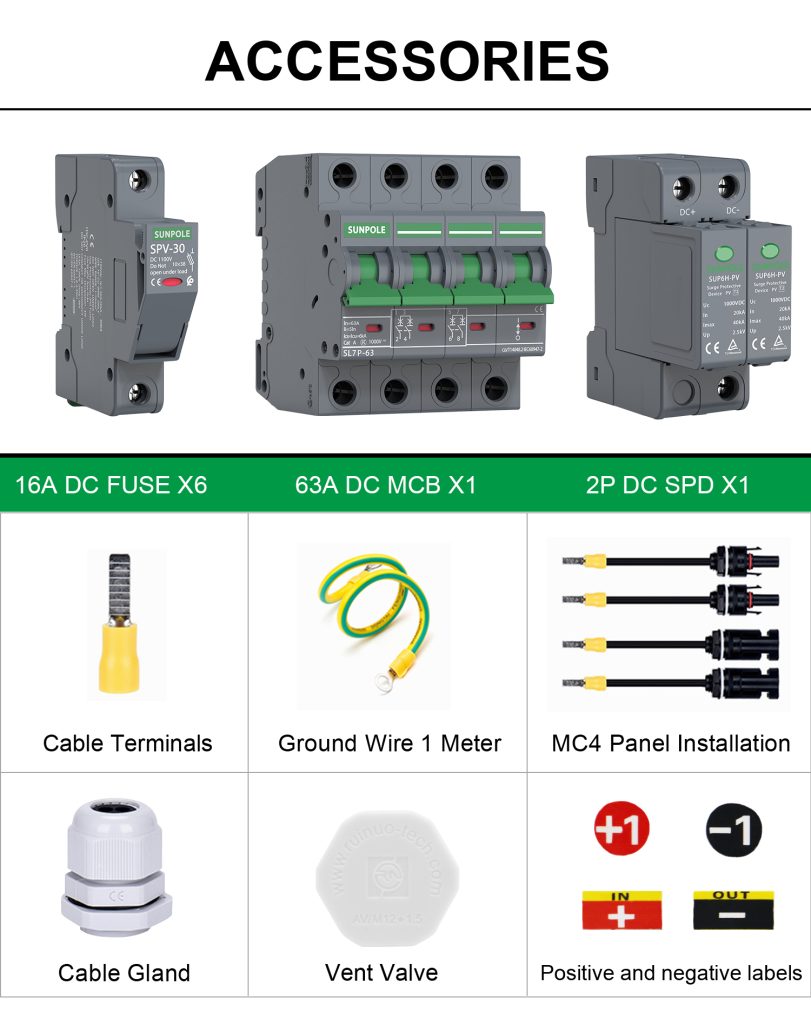

Customers can choose differernt rating solar DC fuse such as 15A 20A 25A 30A 32A according to the Isc of your solar cells. The DC Circuit breaker or DC isolator switch will also be changed if the gPV fuse rating changes.
